ELH model

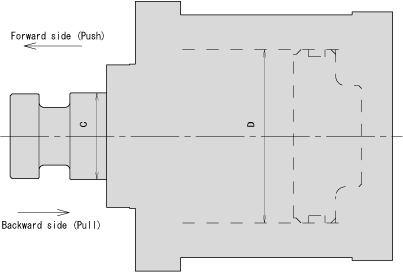

Single rod type cylinder

Cylinder bore D (mm)	Rod diameter C (mm)	Theoretical output(N)
		7MPa		10MPa		14MPa		14.7MPa
		Push	Pull	Push	Pull	Push	Pull	Push	Pull
180	90	178,128	133,596	254,469	190,852	374,069	280,552	407,150	305,363
200	100	219,911	164,934	314,159	235,619	461,814	346,361	502,655	376,991
230	110	290,833	224,310	415,476	320,442	610,749	471,050	664,761	512,708
250	125	343,612	257,709	490,874	368,155	721,585	541,188	785,398	589,049
280	140	431,027	323,270	615,752	461,814	905,156	678,867	985,203	738,903
300	150	494,801	371,101	706,858	530,144	1,039,082	779,311	1,130,973	848,230
330	160	598,709	457,966	855,299	654,237	1,257,289	961,728	1,368,478	1,046,779

Double rod cylinder *

Cylinder bore D (mm)	Rod diameter C (mm)	Theoretical output(N)
		7MPa		10MPa		14MPa		14.7MPa
		Push	Pull	Push	Pull	Push	Pull	Push	Pull
180	90	175,370	133,596	250,528	190,852	368,276	280,552	400,845	305,363
200	100	217,153	164,934	310,218	235,619	456,021	346,361	496,350	376,991
230	110	288,074	224,310	411,535	320,442	604,956	471,050	658,456	512,708
250	125	340,853	257,709	486,933	368,155	715,792	541,188	779,093	589,049
280	140	428,268	323,270	611,811	461,814	899,363	678,867	978,898	738,903
300	150	492,042	371,101	702,918	530,144	1,033,289	779,311	1,124,668	848,230
330	160	595,950	457,966	851,358	654,237	1,251,496	961,728	1,362,172	1,046,779

1kN102kgf

* Diameter of double rod type is calculated by 22.4.

When you select cylinder,please select cylinder size with reserving capacity by taking into account of pressure loss.
