EXS model

EXS

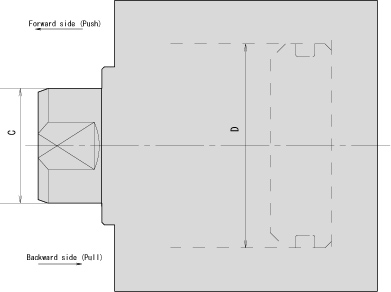

Single rod type cylinder

Cylinder
bore D
(mm)		 Rod
diameter C
(mm)		 Theoretical output(N)
7MPa 10MPa 13.7MPa
Push Pull Push Pull Push Pull
30 18 4,948 3,167 7,069 4,524 9,684 6,198
40 22.4 8,796 6,038 12,566 8,626 17,216 11,817
50 28 13,744 9,434 19,635 13,477 26,900 18,464
63 35.5 21,821 14,892 31,172 21,274 42,706 29,146
70 40 26,939 18,143 38,485 25,918 52,724 35,508
80 45 35,186 24,053 50,265 34,361 68,864 47,075
1kN102kgf


When you select cylinder,please select cylinder size
with reserving capacity by taking into account of pressure loss.
